Tomei Powered — Japan
The Tomei Expreme Ti is the benchmark full titanium cat-back exhaust for the RB26DETT Skyline GT-R — built for true competition use without compromise. A racing-layout straight-through design, Tomei's own-sourced titanium, and a significant weight reduction over OEM make this the go-to exhaust upgrade for R32, R33, and R34 GT-R builds at every level of tune.
Key Specifications
Material
Full Titanium
Tomei-sourced, competition-grade
Main Pipe Diameter
89.1 mm (3.51")
vs. 70 mm OEM on BNR32
Silencer Diameter
152 mm (5.98")
Oversized for optimized flow
Exit Tip Diameter
115 mm (4.53")
Laser-etched Expreme Ti logo
Pipe Wall Thickness
1.0 mm
vs. 1.5 mm OEM iron
Flange Connection
2-Bolt Flange
8 mm flange — gasket included
Weight Savings vs. OEM
R32 — BNR32
16.3 lbs / 7.35 kg
OEM: 43 lbs / 19.5 kg
▼ 26.7 lbs saved
R33 — BCNR33
15.8 lbs / 7.15 kg
OEM: 41.7 lbs / 18.9 kg
▼ 25.9 lbs saved
R34 — BNR34
15.6 lbs / 7.05 kg
OEM: 39.7 lbs / 18.0 kg
▼ 24.1 lbs saved
Chassis Fitment & Part Numbers
| Chassis | Years | Engine | Part Number |
|---|---|---|---|
| Nissan Skyline GT-R R32 (BNR32) | 1989 – 1994 | RB26DETT | TB6090-NS05A |
| Nissan Skyline GT-R R33 (BCNR33) | 1995 – 1998 | RB26DETT | TB6090-NS05B |
| Nissan Skyline GT-R R34 (BNR34) | 1999 – 2002 | RB26DETT | TB6090-NS05C |
Why the Expreme Ti
-
Racing layout — straight as possible
Tomei designed the routing with the fewest bends possible, just like a purpose-built race car exhaust, while still fitting stock bodywork. Maximum gas velocity across the full RB26 powerband.
-
Tomei's own-sourced titanium
Sourcing their own raw material gives Tomei complete control over quality and allows them to keep the price competitive. Every pipe, silencer shell, and tip is 1.0 mm titanium — not stainless or aluminized steel.
-
Oversized 152 mm silencer with titanium punched mesh
The high-flow silencer uses a 32.6% open-slot titanium mesh insert and long-fiber glass wool proven to outlast traditional fiberglass under sustained high-temperature use — track or street.
-
Clamp band + spring pipe joints
Between sections, Tomei uses a hook-and-spring design that absorbs vibration while allowing minor movement — stronger than a conventional flange and bolt joint under heat cycling and track stress.
-
Precision TIG welds with gas lens and back-shield jigs
Titanium is notoriously difficult to weld correctly. Tomei uses gas lens TIG equipment and back-shielding jigs to produce gold/silver colored welds — the visual confirmation of a weld with zero brittleness.

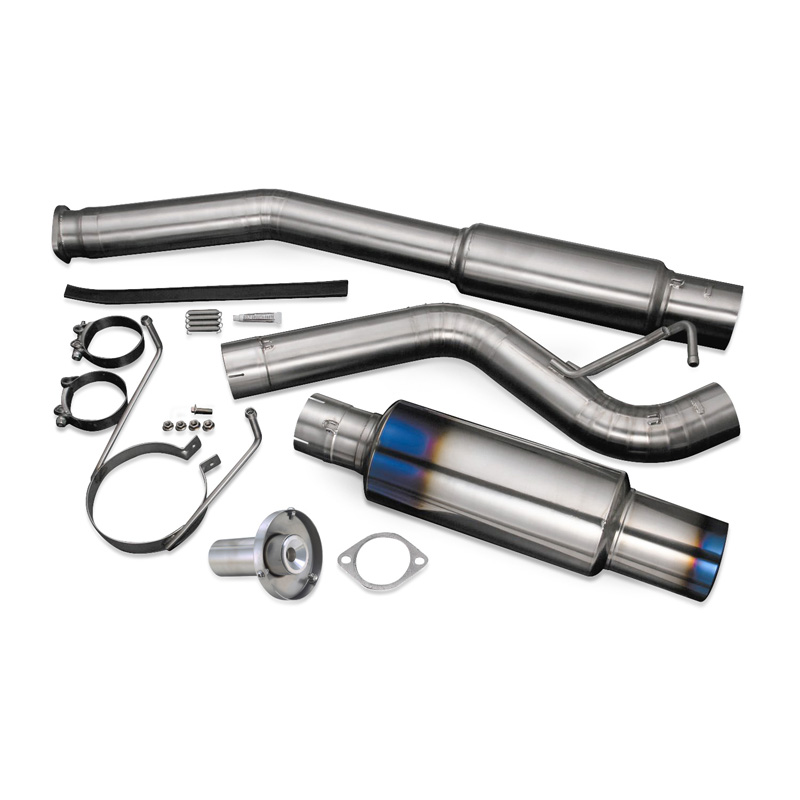

Kit Contents
Full Technical Specifications
| Brand | Tomei Powered (Japan) |
| Product Line | Expreme Ti — Full Titanium Muffler Kit |
| Part Numbers | TB6090-NS05A (R32) / NS05B (R33) / NS05C (R34) |
| Compatible Chassis | BNR32 · BCNR33 · BNR34 |
| Compatible Engine | Nissan RB26DETT |
| System Type | Cat-back muffler kit (3-section pipe assembly) |
| Material | Full Titanium — Tomei-sourced raw material |
| Main Pipe Diameter | 89.1 mm / 3.51 in |
| Main Pipe Thickness | 1.0 mm |
| Silencer Diameter | 152 mm / 5.98 in |
| Silencer Thickness | 1.0 mm |
| Exit Tip Diameter | 115 mm / 4.53 in |
| Flange Thickness | 8.0 mm (matches OEM flange spec) |
| Flange Connection | 2-bolt flange with gasket included |
| Pipe-to-Pipe Connection | Clamp band + hook springs (no gaskets between sections) |
| Weight — R32 (BNR32) | 7.35 kg / 16.3 lbs |
| Weight — R33 (BCNR33) | 7.15 kg / 15.8 lbs |
| Weight — R34 (BNR34) | 7.05 kg / 15.6 lbs |
| Condition | Brand New |
| Country of Origin | Japan |
Installation Notes
The Expreme Ti connects to the existing mid-pipe or factory front pipe via a 2-bolt flange — a gasket is included in the kit. No cutting or fabrication is required on stock undercarriage configurations. Between pipe sections, the clamp-band and spring design requires no gaskets. Professional installation is recommended to confirm clearances on lowered or heavily modified builds. The Tomei installation manual is available at tomeiusa.com. Questions about your specific setup? Call Dynosty at 502-384-8882.
