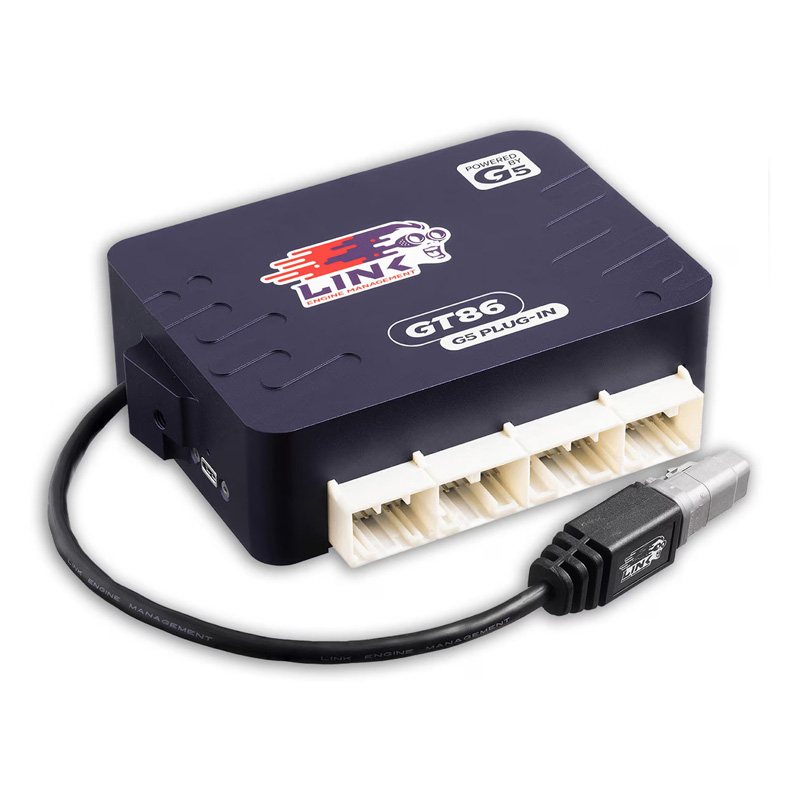

The LINK ECU GT86 G5 Plug-in is a standalone with no adapter harness needed. Sample map included for a head start on calibrating. The GT86 G5 Plug-in runs the same powerful microcontroller and firmware as the G5 Voodoo Pro. Designed for the 2.0 L 4U-GSE/FA20 H4 Engine. Support for both Manual and Automatic Transmissions. Models Supported: Toyota 86, ZN6, 2012 2021 Toyota GT86, ZN6, 2012-2021 Subaru BRZ, ZC6, 2012-2020 Scion FR-S 2013-2016 In the box: G5-GT86 Plugin Computer USB-C Connection Cable Locking USB-C extension cable for easy tuning access 2 x M6 screws for ECU mounting in OEM bracket DTM4 CAN Connection Cable (Pre-Installed in Enclosure) Link stickers Features: Control both Direct and Port Injection Full OEM CAN Bus integration Control both Manual and Automatic Transmissions Billet CNC Aluminium Enclosure Mounts in OEM Location Includes a locking USB-C extension cable for easy tuning access Comes with a built-in powered DTM4 CAN cable Full factory E-throttle (DBW) control Full VVT-i control 512MB of Onboard Data Logging, up to 250 channels and 100k samples per second Runs on Links renowned PC Link, giving you the confidence to get started right away Backed by Links Limited Lifetime Warranty
The following expansion connector inputs/outputs are provided: Expansion connector 1: 1: +14V Out 2: AUX 15 3: AUX 16 4: DI 11 5: DI 10 6: DI 9 7: +5V Out 8: GND Expansion Connector 2: 1: +14V Out 2: Not Connected 3: AN Volt 12 4: AN Volt 11* 5: AN Volt 6* 6: AN Temp 4* 7: +5V Out 8: GND *These inputs each have a jumper to either connect them to the Expansion plug or to their normal functions on the main header.
