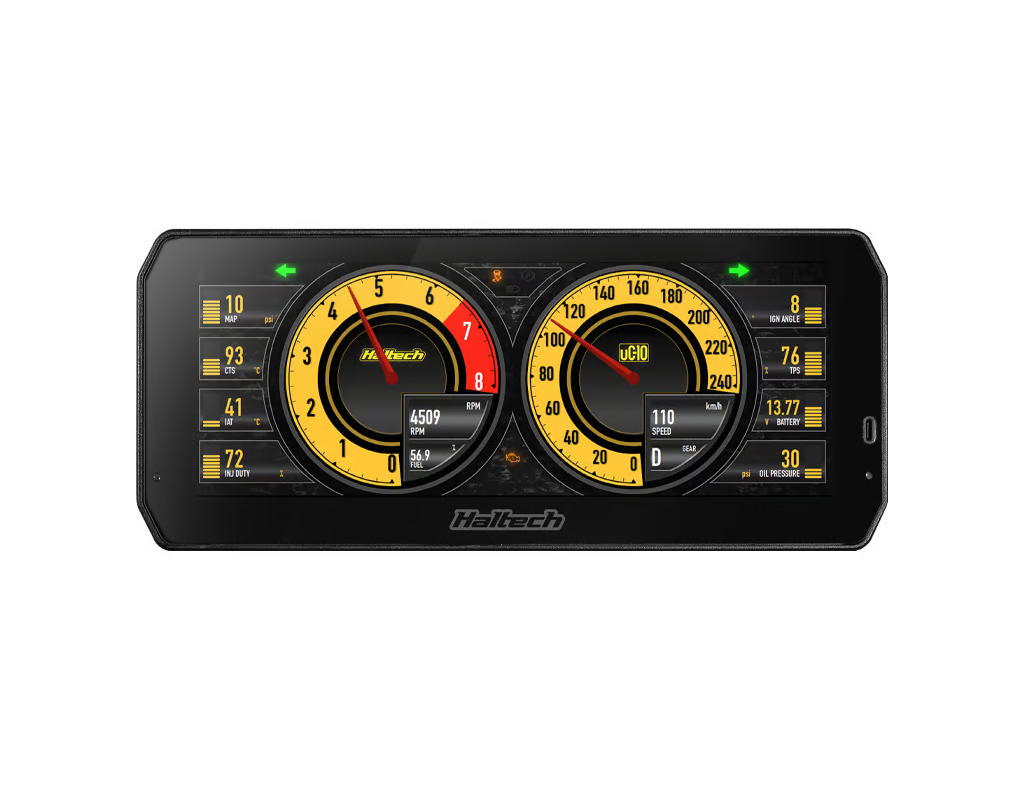

Haltech uC-10 Digital Dash Display (HT-068000)
The Ultimate Wide-Screen Digital Interface.
The Haltech uC-10 is a premium, 10-inch color display dash engineered for maximum clarity and technical flexibility. Unlike the smaller iC-7, the uC-10 features a clean, bezel-less aesthetic without integrated shift lights or physical buttons, focusing entirely on an expansive, high-resolution view of your engine's data. With an optically bonded TFT screen delivering over 600 lumens of brightness, this dash remains perfectly visible even in direct sunlight.
- Product: uC-10 Digital Dash
- Screen Size: 10-inch Full Color (1280 x 480 resolution)
- Brightness: 600+ Lumens
- Condition: Brand New / Genuine
- Part Number: HT-068000
⚠️ SYSTEM INTEGRATION
The uC-10 integrates via CAN with Haltech Elite and Nexus ECUs, supports OBD-II connectivity (via optional adapter), and is compatible with select aftermarket ECU brands.
Key Features:
- Crystal Clear Display: The 10" optically bonded screen provides a 70° minimum viewing angle, 600+ lumens for sunlight readability, and a 6-digit odometer.
- Massive I/O Expansion: Features 10 user-configurable AVIs, 4 DPOs, 4 SPIs, a dedicated Tacho input, and an alternator excite circuit for comprehensive system control.
- Onboard Data Logging: Includes 512MB of internal looped data logging, allowing you to capture and review critical performance metrics.
- Rugged Design: Housed in a sleek aluminum enclosure with an IP64 rating, making it dust-tight and splash-resistant for demanding motorsport environments.
What is Included:
- Haltech uC-10 Digital Dash
- 34-Pin Main Connector Harness & Spare Pins
- DTM-4 to DTM-4 CAN Cable (3.0m)
- USB-C Cable, Wi-Fi Antenna, and Mounting Hardware
- 2x Momentary Switches (for screen cycling and alarm cancellation)
