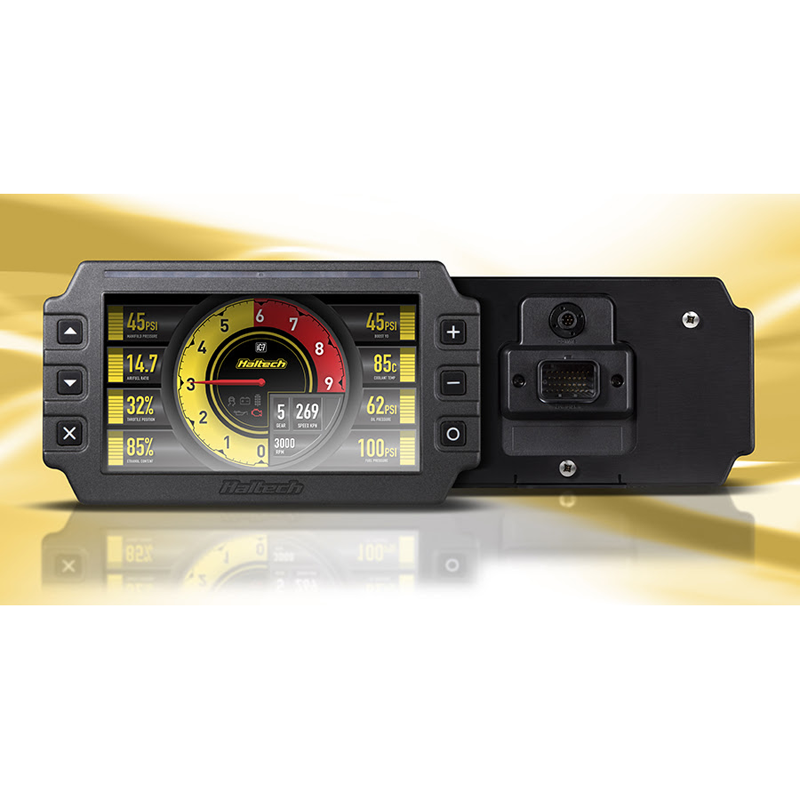

Haltech iC-7 Color Display Dash (HT-067010)
A Modern, High-Brightness Digital Interface for Your Performance Vehicle.
The Haltech iC-7 Display Dash offers a crisp, full-color 7-inch screen designed for maximum sunlight readability and clear data visualization. Whether you are monitoring critical engine vitals on the track or cruising the street, the iC-7 provides a professional digital cockpit experience with easy-to-configure layouts and integrated shift lights.
- Product: iC-7 Color Display Dash
- Screen Size: 7-inch Transflective LCD
- Condition: Brand New / Genuine
- Part Number: HT-067010
⚠️ SYSTEM INTEGRATION
The iC-7 is plug-and-play compatible with the entire Haltech CAN ecosystem, including Elite and Nexus series ECUs. It can also be configured to work with many popular aftermarket ECUs and OBD-II systems using the appropriate adapter cabling.
Key Features:
- High-Brightness Display: Features an ambient light sensor that automatically adjusts the 7" screen for perfect visibility in any lighting condition.
- Configurable Shift Lights: Integrated 14-LED strip across the top of the dash, fully programmable for RPM setpoints and color sequences.
- User-Definable I/O: Expand your monitoring with 9 Analog Voltage Inputs, 3 Digital Pulsed Inputs, a dedicated Tachometer input, and 4 Digital Pulsed Outputs for complete control.
- Customizable Layouts: Easily change between multiple pre-loaded screen layouts and customize channels using the Haltech iC-7 software.
- On-board datalogging (512MB)
What is Included:
- Haltech iC-7 Display Dash
- 34-Pin Main Connector Harness
- DTM-4 to DTM-4 CAN Extension Cable (3.0m)
- USB Programming Cable and Mounting Hardware
Suggested Add-ons:
- Network Expansion: Haltech Elite 4-Port CAN Hub (HT-159000)
