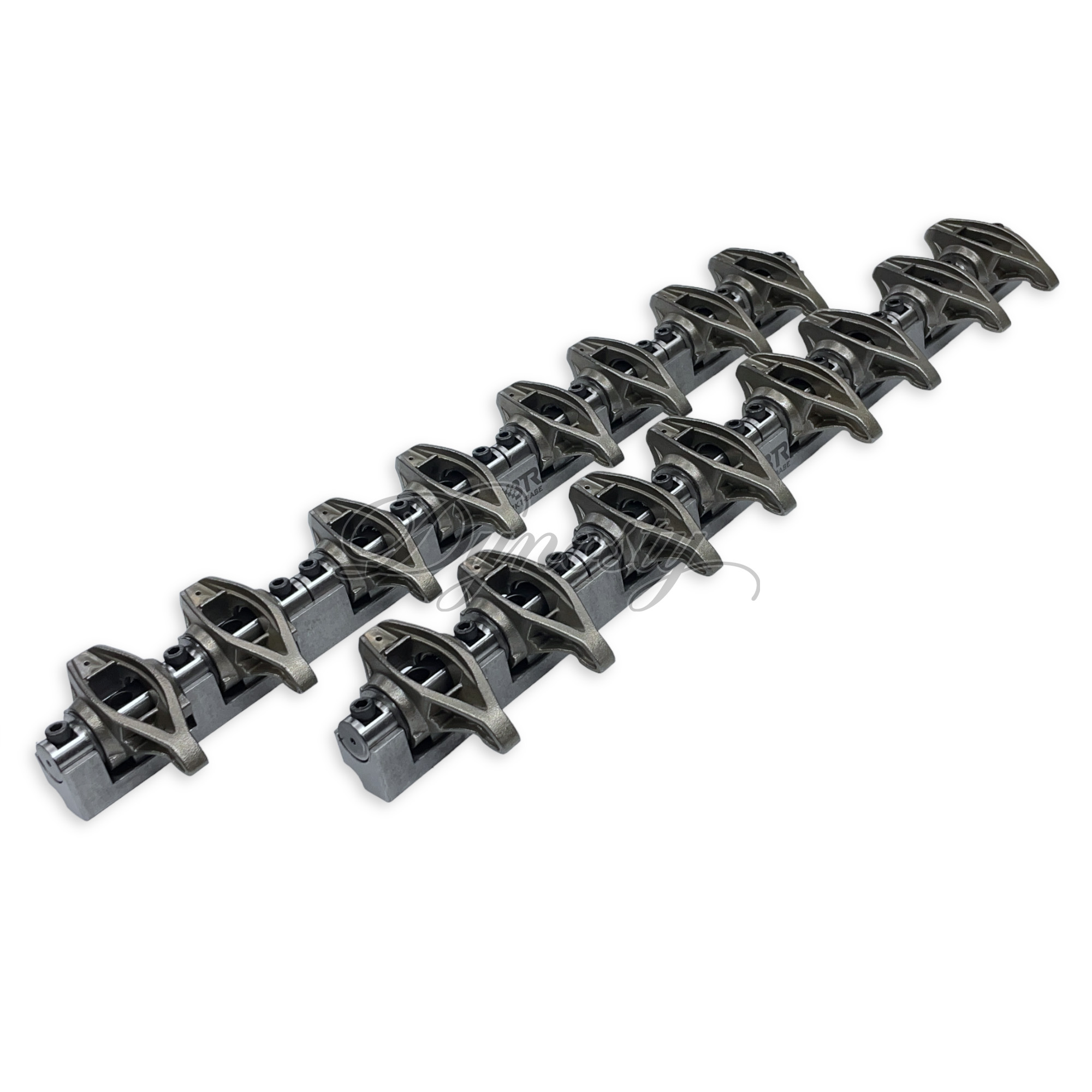

BTR Shaft Rocker System V2 w/ Rockers – GM Gen III / IV LS Cathedral Port (LS1 / LS2 / 5.3 / 6.0)
The factory LS rocker mounting system is a known limitation when pushing performance—introducing valvetrain deflection that can impact stability, durability, and power at higher RPM. The BTR Shaft Rocker System V2 eliminates that weak point with a rigid shaft-mounted design engineered for consistent valve control under load.
Borrowing design principles from high-end race systems, this setup replaces the factory single-bolt rocker mounting with a reinforced multi-fastener shaft assembly. The result is improved valvetrain stability, reduced flex, and more precise valve motion across the entire RPM range.
Key Features
- Complete kit includes BTR rocker arms – ready to install
- Billet steel rocker stands for maximum rigidity
- Four shaft configuration per cylinder head for improved load distribution
- 52100 bearing steel shafts for superior strength and longevity
- Five fasteners per rocker pair vs. factory single-bolt design
- Significantly reduces valvetrain deflection under load
- V2 version includes shims for easier installation and improved retention over snap rings
- Pre-assembled for simplified installation
Fitment
- 1997–2013 GM Gen III / IV LS Cathedral Port Cylinder Heads
- 4.8L / 5.3L / 5.7L / 6.0L applications
- Engine Compatibility: LS1, LS2, LM7, L33, LQ4, LQ9
- OEM Casting Compatibility: 243, 241, 799, 853, 706, 862, 317
- Compatible with Trick Flow Cathedral Port heads
Important Notes
- Does NOT fit rectangle port heads (LS3, L99, L92, LY6, L96, etc.) with offset intake rockers
- May fit other aftermarket heads—fitment verification required prior to purchase
- Factory bolts can be reused; new bolts are not included
⚠️ TECH NOTE: Proper installation and valvetrain setup are critical when converting to a shaft rocker system. Always verify pushrod length, rocker alignment, and clearances during assembly.
